34W/69W/100W/131W 57mm Brushless DC Motor 24V with worm gearbox Brushless DC worm geared motor

Ask Lasest Price
Brand Name :	KIMBROUGH
Model Number :	J57BLRWG55-230A, J57BLRWG75-230A, J57BLRWG95-230A, J57BLRWG115-230A
Certification :	CE
Supply Ability :	10000pcs per month

Add to Cart

Product Details
Company Profile

34W/69W/100W/131W 57mm Brushless DC Motor 24V with worm gearbox Brushless DC worm geared motor

34W/69W/100W/131W 57mm Brushless DC Motor 24V with worm gearbox Brushless DC worm geared motor

Winding type	Star
Hall effect angle	120°
Insulation class	B
Ambient temperature range	-20°C ~ +50°C
Insulation resistance	100MΩMin 500VDC
Dielectric Strength	500VDC 1 minute

Technical data :

Model	Voltage (VDC)	Motor Rated Parameters				Motor Peak Torque (N.m)	Torque Constant (N.m/A)	Back EMF (V/k RPM)	Motor Rotor Inertia (kg.mm²)	Length (L:mm)	Weight (kg)	Gear Ratio
Model	Voltage (VDC)	Speed (rpm)	Torque (N.m)	Current (A)	Power (W)	Motor Peak Torque (N.m)	Torque Constant (N.m/A)	Back EMF (V/k RPM)	Motor Rotor Inertia (kg.mm²)	Length (L:mm)	Weight (kg)	Gear Ratio
J57BLRWG55-230A	24	3000	0.11	2.4	34	0.33	0.06	4.22	7.5	151	1.74	5:1 7.5:1 10:1 15:1 20:1 25:1 30:1 40:1 50:1 60:1 80:1
J57BLRWG75-230A		3000	0.22	4.8	69	0.66	0.06	4.27	11.9	171	2.05
J57BLRWG95-230A		3000	0.32	6.6	100	0.99	0.063	4.27	17.3	191	2.3
J57BLRWG115-230A		3000	0.42	8.6	131	1.32	0.063	4.29	23	211	2.55

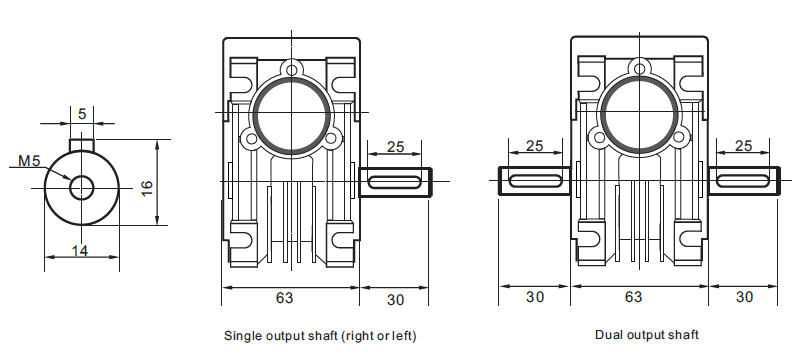

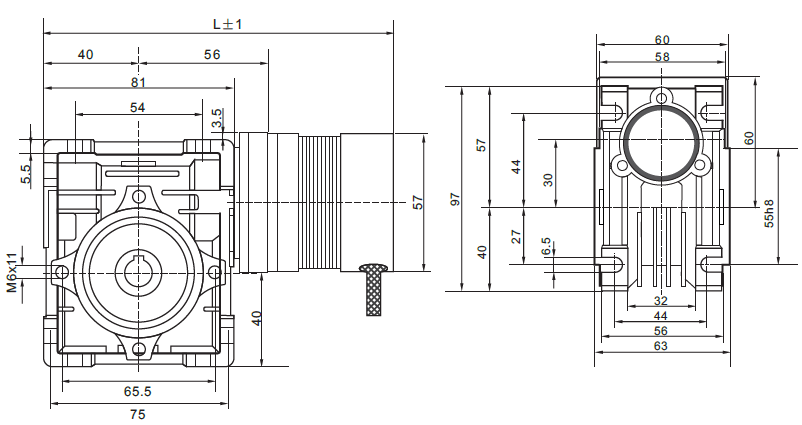

Dimension unit:mm

Wiring diagram
