314W/565W/659W/785W 86mm Brushless DC Motor 48V with planetary gearbox Brushless DC planetary geared motor

Ask Lasest Price
Brand Name :	KIMBROUGH
Model Number :	J86BLSPG80-430A, J86BLSPG105-430A, J86BLSPG115-430A, J86BLSPG130-430A
Certification :	CE
Supply Ability :	10000pcs per month

Add to Cart

Product Details
Company Profile

314W/565W/659W/785W 86mm Brushless DC Motor 48V with planetary gearbox Brushless DC planetary geared motor

314W/565W/659W/785W 86mm Brushless DC Motor 48V with planetary gearbox Brushless DC planetary geared motor

Winding type	Star
Hall effect angle	120°
Insulation class	B
Ambient temperature range	-20°C ~ +50°C
Insulation resistance	100MΩMin 500VDC
Dielectric Strength	500VDC 1 minute

Technical data:

Model	Voltage (VDC)	Motor Rated Parameters				Motor Peak Torque (N.m)	Torque Constant (N.m/A)	Back EMF (V/k RPM)	Motor Rotor Inertia (kg.mm²)	Length(L:mm)		Weight(kg)
Model	Voltage (VDC)	Speed (rpm)	Torque (N.m)	Current (A)	Power (W)	Motor Peak Torque (N.m)	Torque Constant (N.m/A)	Back EMF (V/k RPM)	Motor Rotor Inertia (kg.mm²)	1-stage	2-stage	1-stage	2-stage
J86BLSPG80-430A	48	3000	1.0	8.5	314	3.0	0.133	9.8	120	153	167	4.3	4.8
J86BLSPG105-430A		3000	1.8	14.8	565	5.4	0.133	9.8	200	178	192	5.4	5.9
J86BLSPG115-430A		3000	2.1	18	659	6.3	0.133	9.7	260	188	202	5.8	6.3
J86BLSPG130-430A		3000	2.5	19.5	785	7.5	0.138	10.2	320	203	217	6.3	6.8
J86BLSPG130-630A	310	3000	2.5	3.3	785	7.5	0.8	62	320	203	217	6.3	6.8

Planetary gearbox specification:

Technical Data		1 stage	2 stage
Gear ratio		4,5,10	16,20,25,40,50,100
Length L1:	mm	73	87
Rated load:	Nm	≤50	≤90
Efficiency:	%	96	94
Backlash:	arcmin	≤15	≤25
Rated input speed:	rpm	3000	3000
Max input speed:	rpm	5000	5000
Safety class:	IP	65	65
Lubrication:		Life grease lubrication
Noise:	dB	≤45	≤45
Service life:	h	~20000	~20000

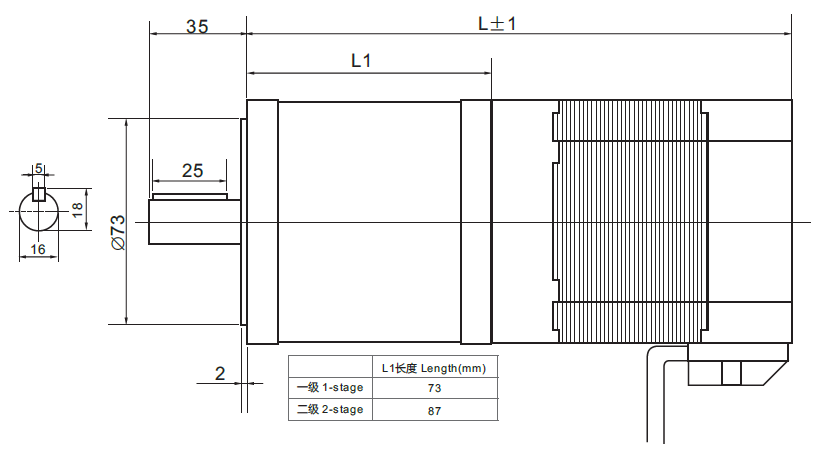

Dimension unit:mm

Wiring diagram
