26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor

Ask Lasest Price
Brand Name :	KIMBROUGH
Model Number :	J42BLSPG40-240A, J42BLSPG60-240A, J42BLSPG80-240A
Certification :	CE
Supply Ability :	10000pcs per month

Add to Cart

Product Details
Company Profile

26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor

26W/52W/69W 42mm Brushless DC Motor 24V with planetary gearbox Brushless DC planetary geared motor

Winding type	Star
Hall effect angle	120°
Insulation class	B
Ambient temperature range	-20°C ~ +50°C
Insulation resistance	100MΩMin 500VDC
Dielectric Strength	500VDC 1 minute

Technical data :

Model	Voltage (VDC)	Motor Rated Parameters				Motor Peak Torque (N.m)	Torque Constant (N.m/A)	Back EMF (V/k RPM)	Motor Rotor Inertia (kg.mm²)	Length(L:mm)		Weight(kg)
Model	Voltage (VDC)	Speed (rpm)	Torque (N.m)	Current (A)	Power (W)	Motor Peak Torque (N.m)	Torque Constant (N.m/A)	Back EMF (V/k RPM)	Motor Rotor Inertia (kg.mm²)	1-stage	2-stage	1-stage	2-stage
J42BLSPG40-240A	24	4000	0.063	1.65	26	0.185	0.035	3.17	5.2	82	92	0.73	0.93
J42BLSPG60-240A		4000	0.125	3.4	52	0.38	0.041	3.13	9.3	102	112	0.88	1.08
J42BLSPG80-240A		4000	0.165	4.5	69	0.55	0.042	3.28	13.4	122	132	1.03	1.23
J42BLSPG100-240A		4000	0.25	6.6	105	0.75	0.0376	2.62	9.6	142	152	1.2	1.4

Planetary gearbox specification:

Technical Data		1 stage	2 stage
Gear ratio		4,5,10	16,20,25,40,50,100
Length L1:	mm	42	52
Rated load:	Nm	≤15	≤25
Efficiency:	%	95	90
Backlash:	arcmin	≤15	≤25
Rated input speed:	rpm	3000	3000
Max input speed:	rpm	5000	5000
Safety class:	IP	65	65
Lubrication:		Life grease lubrication
Noise:	dB	≤45	≤45
Service life:	h	~20000	~20000

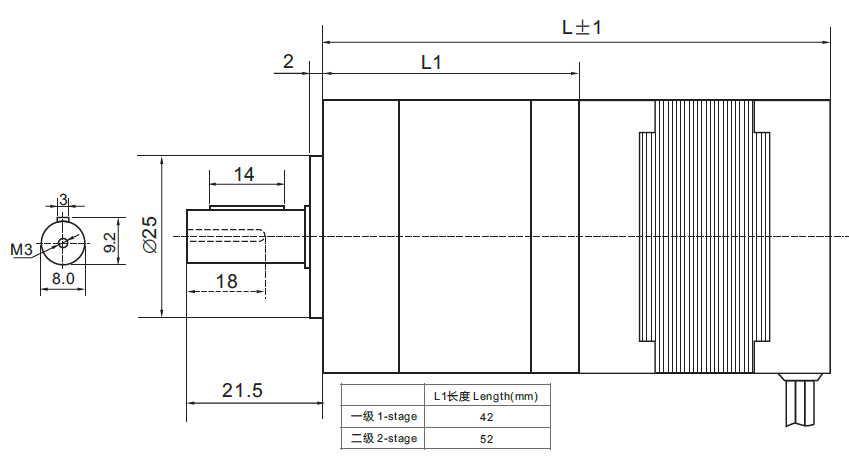

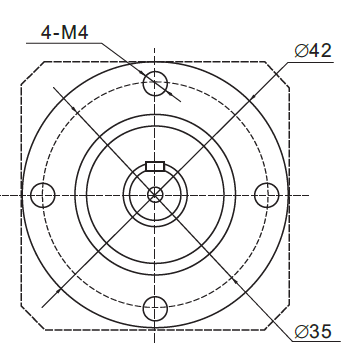

Dimension unit:mm

Wiring diagram
