Stepper Motor Driver JB430M DC12-40V 0-3.0A 6400 pulse/R

Features

6 channels constant angle and constant torque microstep, highest microstep is up to 6400 pulse/R

Upmost response frequency amounts to 150Kpps

Once the pulse stops over 100ms, the phase current will automatically cut by half

Bipolar constant current chopper control

Opto-isolated signal Input/Output

Driving current is continuously adjustable from 0A/phase to 3A/phase

Single power input, voltage range: DC12-40V

It can match 2 phase hybrid stepper motors whose current is under 3A, flange size ranges from 28mm to 57mm.

Wiring and Dimension example

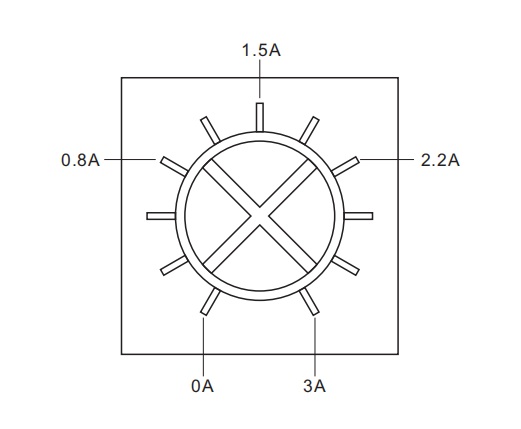

Current setting

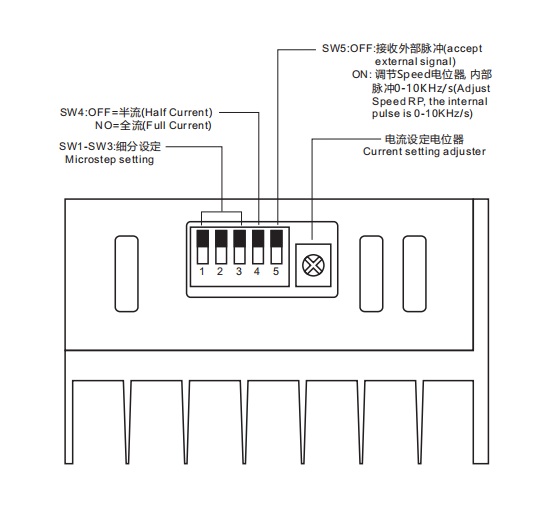

Microstep setting

Microstep	200	400	800	1600	3200	6400
SW1	OFF	OFF	OFF	ON	ON	ON
SW2	OFF	ON	ON	OFF	ON	ON
SW3	ON	OFF	ON	ON	OFF	ON
SW5	OFF: accept external pulse signal ON: Adjust Speed RP, the internal pulse is 0-10KHz/s

Terminal function

Mark	Function	Notes
Power	Power indicator	The green indicator lights when the power is on.
RV	Pulse speed potentiometer	Adjust the internal pulse frequency of the driver. When the SW5 is ON, it will decrease counterclockwise and increase clockwise. Range: 0-10KHz/s
Im	Current setting potentiometer	Adjust motor’s phase current, it will decrease counterclockwise and increase clockwise.
PU-	Step pulse signal-	Effects on falling edge, the motor goes one step as the pulse input change from “high” to “low”. Input resistance is 220Ω. Requirement: low voltage:0-0.5V, high voltage:4-5V, pulse width >2.5μs
PU+	Step pulse signal+	It can connect +5V - +24V, but an extra resistor is needed when it is over +5V
MF-	Motor Free signal-	Once effects, it will cut off the motor current, the driver stops working and sets the motor free
MF+	Motor Free signal+	It can connect +5V - +24V, but an extra resistor is needed when it is over +5V
DR-	Direction control signal-	Change motor’s direction of rotation. Input resistance is 220Ω. Requirement: low voltage:0-0.5V
DR+	Direction control signal+	It can connect +5V - +24V, but an extra resistor is needed when it is over +5V
V-	Power-	DC12-40V
V+	Power+	DC12-40V
B-	Connect to the motor
B+
A-
A+

! Caution

1. Do not reverse the power input, input voltage should not exceed DC40V.

2. Input control signal is 5V, current-limiting resistor should be connected when it is over 5V.
