Size 80mm Brushless DC Motor 48V 3000RPM 126W 0.4N.m J80BLS86-430A 3phase body length 86mm BLDC motor

Ask Lasest Price
Brand Name :	KIMBROUGH
Model Number :	J80BLS86-430A
Certification :	CE
Supply Ability :	10000pcs per month

Add to Cart

Product Details
Company Profile

Size 80mm Brushless DC Motor 48V 3000RPM 126W 0.4N.m J80BLS86-430A 3phase body length 86mm BLDC motor

Size 80mm Brushless DC Motor 48V 3000RPM 126W 0.4N.m J80BLS86-430A 3phase body length 86mm BLDC motor

Winding type	Star
Hall effect angle	120°
Insulation class	B
Ambient temperature range	-20°C ~ +50°C
Insulation resistance	100MΩMin 500VDC
Dielectric Strength	500VDC 1 minute

Specification :

Model	J80BLS86-430A	J80BLS106-430A	J80BLS126-430A
Number of poles	4
Number of phase	3
Nominal Voltage VDC	48	48	48
Rated speed RPM	3000	3000	3000
Rated torque Nm	0.4	0.7	1.2
Rated current Amps	3.2	5.5	10
Output power Watts	126	220	376
Peak torque Nm	1.2	2.1	3.81
Torque constant Nm/A	0.126	0.127	0.127
Back EMF V/k RPM	9.1	9	8.7
Rotor Inertia kg.mm²	39	53	65
Body length(L) mm	86	106	126
Mass kg	2.0	2.5	3.0

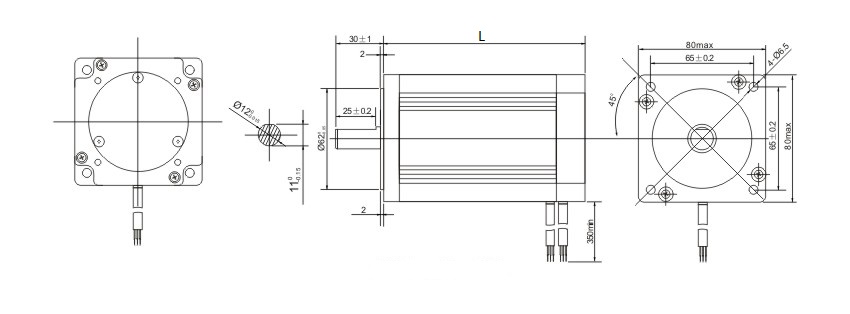

Dimension unit:mm

Wiring diagram
